उत्पाद विवरण:
|
| नाम: | डबल वॉल ड्रिल पाइप | प्रकार: | ड्रिल पाइप |
|---|---|---|---|
| रंग: | प्रार्थना | फ़ायदा: | उच्च गुणवत्ता और फैक्टरी मूल्य |
| नमूना: | डब्ल्यूबी114/52 | अन्य ट्यूब का OD (मिमी): | 114 |
| जोड़ का अन्य व्यास (मिमी): | 52 | जोड़ का बाहरी व्यास (मिमी): | 116 |
| प्रभावी लंबाई (एम): | 6 | ||
| प्रमुखता देना: | reverse circulation drill pipe 114mm,high speed reverse circulation drill pipe,double wall pole rc drill pipe |
||

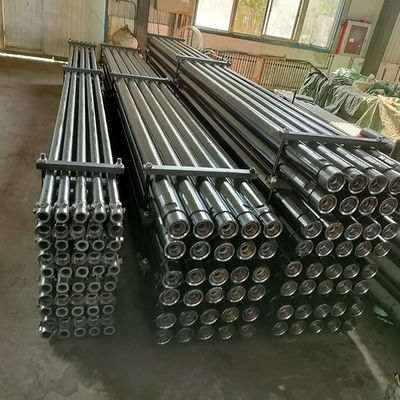

114mm 4 1/2" remet double-wall pole reverse circulation
Product Description:
The high-pressure air and the gas pipe are transported to somewhere in the well. The high-pressure air and liquid are injected into the pipe through the mixer. Because the density of the mixed liquid is lower than that of the flushing liquid, the pressure difference between the pipe and the sample pipe causes the mixed gas and liquid to flow in the liquid. Under the action of the column pressure, it flows upward rapidly, and the cuttings particles are continuously brought out from the bottom of the hole to the ground. This drilling method has the advantages of high drilling speed, good hole quality, and less hole collapse in loose formations.
Double wall drill pipe
| Type | O.D.of the outer tube (mm) | I.D.of the inner tube (mm) | Outer dianeter of joint (mm) | Type of threads | Effective length (m) |
| WB114/65 | 114 | 65 | 156 | 41F | 6 |
| WB127/76 | 127 | 76 | 162/168 | 41/21F | 6 , 9.5 |
| DB127/76 | 127 | 76 | 184 | 51/2FH | 9.5 |
| WB140/88 | 139.7 | 88 | 184 | 51/2FH | 6,9.5 |
| WB219/130 | 219 | 130 | 240 | Factory standard | 6,9.5 |
| WK76/32 | 76 | 32 | 78 | 3" Remet | 3 |
| WK102/41 | 102 | 41 | 103 | 4" Remet | 3 , 6 |
| WK114/52 | 114.3 | 52 | 116 | 4 1/2" Remet | 3 , 6 |
| WK114/38 | 114.3 | 38 | 114.3 | 4 1/2" Metzke | 3 , 6 |
| WK114/50 | 114.3 | 50 | 114.3 | 4 1/2" Remet | 3 , 6 |
Drill pipe usage notes:
1. Before connecting the new drill pipe, apply thread oil on the threads
2. Trim and break at least 3 times before drilling
3. Hard bending and plastic coating can be processed according to the special requirements of customers.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 7-30 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample need to pay the cost of products and freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
